1,4 - Butanediol (BDO) is a crucial organic chemical raw material with a wide range of applications in the production of plastics, solvents, and pharmaceuticals. The dehydrogenation of 1,4 - butanediol is an important chemical reaction that can lead to the formation of various valuable products such as γ - butyrolactone (GBL) and tetrahydrofuran (THF). As a reliable 1,4 - Butanediol supplier, I am deeply interested in sharing the reaction conditions for 1,4 - butanediol dehydrogenation.
Catalysts
Catalysts play a pivotal role in the dehydrogenation of 1,4 - butanediol. They can significantly lower the activation energy of the reaction, thereby increasing the reaction rate and selectivity. Commonly used catalysts for this reaction include copper - based catalysts and noble - metal catalysts.
Copper - based catalysts are widely employed due to their relatively low cost and good catalytic performance. For example, copper - zinc oxide catalysts have shown excellent activity in the dehydrogenation of 1,4 - butanediol. These catalysts can be prepared by co - precipitation methods, which involve the simultaneous precipitation of copper and zinc salts in an alkaline solution. The resulting precipitate is then calcined and reduced to obtain the active copper - zinc oxide catalyst. The copper in the catalyst provides the active sites for the dehydrogenation reaction, while the zinc oxide helps to improve the dispersion of copper and enhance the stability of the catalyst.
Noble - metal catalysts, such as palladium and platinum, also exhibit high catalytic activity in the dehydrogenation of 1,4 - butanediol. However, their high cost limits their large - scale industrial application. Nevertheless, in some cases where high selectivity and activity are required, noble - metal catalysts may be the preferred choice. For instance, palladium - supported catalysts can be used to selectively dehydrogenate 1,4 - butanediol to γ - butyrolactone with high yield.
Temperature
Temperature is another critical factor affecting the dehydrogenation of 1,4 - butanediol. Generally, the dehydrogenation reaction is an endothermic process, which means that increasing the temperature can promote the forward reaction according to Le Chatelier's principle.
In the range of 200 - 300 °C, the reaction rate of 1,4 - butanediol dehydrogenation increases with the increase of temperature. At lower temperatures, the reaction rate is relatively slow, and the conversion of 1,4 - butanediol is limited. As the temperature rises above 300 °C, side reactions may occur, leading to the formation of by - products such as carbonaceous deposits and other high - boiling compounds. These side reactions can not only reduce the selectivity of the desired products but also deactivate the catalyst over time. Therefore, an optimal temperature range of around 250 - 280 °C is often selected for the dehydrogenation of 1,4 - butanediol to achieve a good balance between reaction rate and selectivity.
Pressure
The pressure conditions also have an impact on the dehydrogenation of 1,4 - butanediol. In most cases, the reaction is carried out at atmospheric pressure or slightly reduced pressure.
Atmospheric pressure is convenient and cost - effective for industrial production. Under atmospheric pressure, the vaporization of 1,4 - butanediol can be easily achieved, and the reaction mixture can flow smoothly through the reactor. Reduced pressure conditions can be beneficial in some situations. By reducing the pressure, the boiling point of 1,4 - butanediol and the reaction products is lowered, which can prevent the thermal decomposition of the reactants and products at high temperatures. Additionally, reduced pressure can promote the desorption of the reaction products from the catalyst surface, thereby increasing the reaction rate. However, operating at reduced pressure requires additional equipment and energy for vacuum generation, which may increase the production cost.
Reaction Medium
The choice of reaction medium can influence the dehydrogenation of 1,4 - butanediol. In many cases, the reaction is carried out in the gas phase. Gas - phase reactions have several advantages, such as good mass transfer and heat transfer properties, which can ensure uniform reaction conditions and high reaction rates.
In the gas - phase dehydrogenation of 1,4 - butanediol, the reactant is vaporized and mixed with an inert gas such as nitrogen or hydrogen. The inert gas can act as a diluent to control the concentration of 1,4 - butanediol in the reaction mixture and prevent the occurrence of explosive mixtures. Hydrogen can also be used as a reducing agent to maintain the activity of the catalyst and prevent its oxidation.
Liquid - phase reactions can also be considered, especially when using certain catalysts that are more suitable for liquid - phase conditions. However, liquid - phase reactions may face challenges such as poor mass transfer and heat transfer, which can lead to non - uniform reaction conditions and lower reaction rates.
Influence of Impurities
Impurities in 1,4 - butanediol can have a negative impact on the dehydrogenation reaction. For example, trace amounts of sulfur - containing compounds can poison the catalyst, reducing its activity and selectivity. Therefore, it is essential to ensure the high purity of 1,4 - butanediol before the dehydrogenation reaction.
As a 1,4 - Butanediol supplier, I take great care in the purification process of 1,4 - butanediol to minimize the content of impurities. We use advanced purification techniques such as distillation and adsorption to remove impurities and ensure the quality of our products.
Related Chemicals and Their Applications

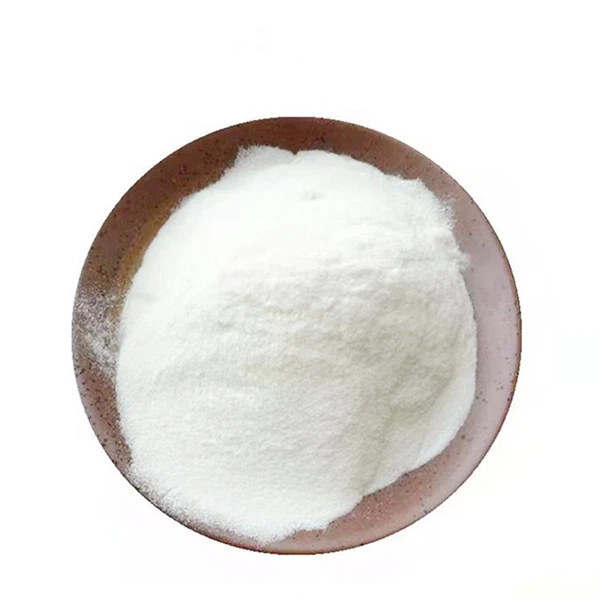

In the process of chemical production related to 1,4 - butanediol, some other chemicals also play important roles. For example, 2,4,6 - Tri - tert - butylphenol/TTBP/Antioxidant 246 CAS 732 - 26 - 3 is an antioxidant that can be used to prevent the oxidation of organic compounds during storage and processing. It can protect the products from degradation caused by oxygen and free radicals, thereby extending their shelf life.
4 - Hydroxy - 2,2,6,6 - tetramethyl - piperidinooxy/Inhibitor 701 CAS 2226 - 96 - 2 is an inhibitor that can be used to control the polymerization reaction. In the production process of some polymers derived from 1,4 - butanediol, this inhibitor can prevent premature polymerization and ensure the quality of the final products.
2 - Methyl - 1,4 - naphthoquinone/Menadione CAS 58 - 27 - 5 has applications in the pharmaceutical and biochemical fields. It can be used as a vitamin K precursor and has certain biological activities.
Conclusion
The dehydrogenation of 1,4 - butanediol is a complex chemical reaction that is affected by multiple factors such as catalysts, temperature, pressure, reaction medium, and impurities. By carefully controlling these reaction conditions, we can achieve high conversion and selectivity of 1,4 - butanediol dehydrogenation, producing valuable products such as γ - butyrolactone and tetrahydrofuran.
As a 1,4 - Butanediol supplier, I am committed to providing high - quality 1,4 - butanediol products to meet the needs of different customers. If you are interested in the dehydrogenation of 1,4 - butanediol or need to purchase 1,4 - butanediol for your production, please feel free to contact me for further discussion and negotiation. We can work together to explore the best solutions for your chemical production processes.
References
- Smith, J. K. (2018). Catalytic Dehydrogenation of Alcohols. Chemical Reviews, 118(12), 5823 - 5866.
- Jones, R. A. (2020). Gas - Phase Reactions in Organic Synthesis. Wiley - VCH.
- Brown, L. M. (2019). Influence of Reaction Conditions on Chemical Reactions. Journal of Chemical Engineering, 45(3), 212 - 220.
